Analytics Server, Management Server



The Vess A6120 series is purpose-built as building blocks for the deployment of a complete system. Reliable and easy to set up, there are three main specifications for the Vess A6120 series:

  • Vess Orange (A6120-AS) - designed for running intelligent analytics
  • Vess Black (A6120-MS) - designed for managing the whole system
  • Vess Blue (A6120-RS) – designed for general purposes

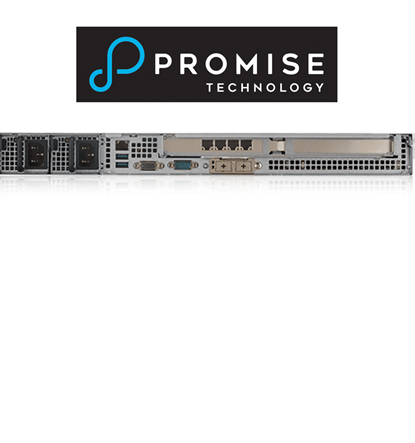

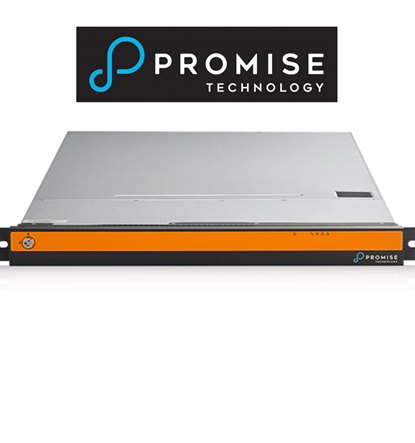

Vess A6120-AS Specifications
Form Factor
1U 4-bay
Processor
2 x Intel Xeon E5-2620 v4
Memory
16/32GB DDR4 ECC
Internal Storage
M.2 64G
SSD
0/2 (optional)
HDD
4 x 3.5” SATA (SAS optional)
Storage Expansion
iSCSI and JBOD
RAID Levels
0,1,1E,3,5,6,10(0+1), 30,50,60
RAID Stripe Size Support
64K, 128K, 256K, 512K and 1MB
Storage Expansion
Up to 112 HDDs per node
Max LUNs
256 logical drives per controller
Networking
1GbE x 4
(Optional: 10G BaseT/SFP+/FC x 2)
Power Supply
Dual 650W Platinum
Dimensions
710mm x 430mm x 43.5 mm
System Cooling
5 swappable fans
Preloaded OS
Windows Server 2012R2 Standard
Management Tools/Interface
GUI/SNMP via Ethernet/CLI&CLU via Ethernet or Graphics/OPAS Service via USB/SDK or API for integration
Safety Certification
FCC/CE/VCCI/RCM/BSMI/CB/KCC
Warranty
3-year Limited Warranty
Accessories
Sliding Rail, 8GB DDR4 ECC Memory

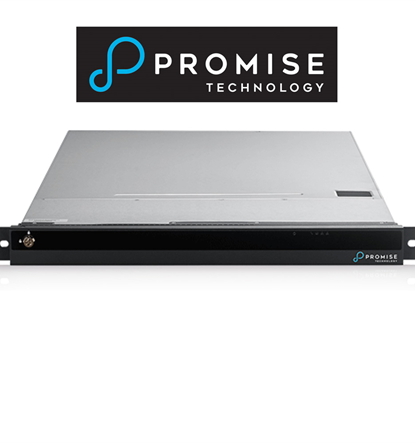

Vess A6120-MS Specifications
Form Factor
1U 4-bay
Processor
1 x Intel Xeon E5-2620 v4
Memory
8GB DDR4 ECC
Internal Storage
M.2 64G
HDD
4 x 3.5” SATA (SAS optional)
Storage Expansion
iSCSI and JBOD
RAID Levels
0,1,1E,3,5,6,10(0+1), 30,50,60
RAID Stripe Size Support
64K, 128K, 256K, 512K and 1MB
Storage Expansion
Up to 112 HDDs thru iSCSI & JBOD
Max LUNs
256 logical drives per controller
Networking
1GbE x 2
(Optional: 10G BaseT/SFP+/FC x 2)
Power Supply
Dual 650W Platinum
Dimensions
710mm x 430mm x 43.5 mm
System Cooling
5 swappable fans
Preloaded OS
Windows Server 2012R2 Standard
Management Tools/Interface
GUI/SNMP via Ethernet/CLI&CLU via Ethernet or Graphics/OPAS Service via USB/SDK or API for integration
Safety Certification
FCC/CE/VCCI/RCM/BSMI/CB/KCC
Warranty
3-year Limited Warranty
Accessories
Sliding Rail, 8GB DDR4 ECC Memory

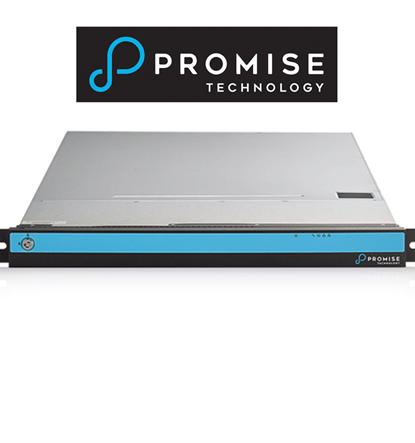

Vess A6120-RS Specifications
Form Factor
1U 4-bay
Processor
1 x Intel Xeon E5-2603 v4
Memory
8GB DDR4 ECC
Internal Storage
M.2 64G
HDD
4 x 3.5” SATA (SAS optional)
Storage Expansion
iSCSI and JBOD
RAID Levels
0,1,1E,3,5,6,10(0+1), 30,50,60
RAID Stripe Size Support
64K, 128K, 256K, 512K and 1MB
Storage Expansion
Up to 112 HDDs thru iSCSI & JBOD
Max LUNs
256 logical drives per controller
Networking
1GbE x 2
(Optional: 10G BaseT/SFP+/FC x 2)
Power Supply
Dual 650W Platinum
Dimensions
710mm x 430mm x 43.5 mm
System Cooling
5 swappable fans
Preloaded OS
Windows 10
Management Tools/Interface
GUI/SNMP via Ethernet/CLI&CLU via Ethernet or Graphics/OPAS Service via USB/SDK or API for integration
Safety Certification
FCC/CE/VCCI/RCM/BSMI/CB/KCC
Warranty
3-year Limited Warranty
Accessories
Sliding Rail, 8GB DDR4 ECC Memory
